Retrieving water quality data from the Environment Agency's new API

The Environment Agency has a treasure trove of data on water quality in English rivers, made openly available via a web portal, with an accompanying API.

Back at the end of last year (2025) the EA refreshed the web portal, removing a handy option to bulk download data. At the same time, they committed the cardinal sin of completely changing their API, deprecating their old API at the same time, with very little notice. Those of us that used the old API were left with broken scripts and fair barrier to accessing the data, compounding by rather opaque documentation.

I have been digging into the new API over the past few days, and thought it would be useful to show a few quick, tangible examples of how it can be used.

Prerequisites

I am using Python’s Requests library, coupled with Polars to process the data (because Pandas is so last year) and Ploty to plot. To follow along, you will need to install reasonably recent (as of March 2026) versions of these. Plotly Express also needs NumPy to work, and (because I am rendering the graph as a PNG to display on this website), Kaleido is needed to. I recommend using the Pixi package manager (because Conda is so last year). To create a new Pixi workspace in your current folder with an associated environment containing the required packages, run:

pixi init
pixi add python polars plotly numpy python-kaleido

All observations in a given date range

The nomenclature of the API is confusing, but if you are interested in measured values for different water quality parameters (determinands), then observations are what you are after. To give a fuller explanation: Observations are measurements taken on a sample, which are taking during sampling at a sampling point, and include the determinand and a value (given in a column called “result”). I said it was confusing…

Fortunately, there is a convenient API POST endpoint for retrieving observations: /data/observations. A series of filters can be passed as parameters to this endpoint, including determinand (if you are interested in only one properties - more on that later), date (filter by exact date), dateFrom and dateTo, and a host of coordinate parameters (easting, northing, latitude, longitude, radius) for “radius-based searches”, and many more. These are all theoretically optional, but you might stumble across errors if you try to retrieve too much data at once. For example, you have to specify dates unless you are requesting data for a specific sampling point.

offset = 0
limit = 2500
while True:
    r = requests.post(..., params={'skip': offset, 'limit': limit})
    if r.text == '':
        break
    offset += limit

Let’s start by getting all measurements taken in, say, the first week of January 2026. We can use this endpoint to build a query and retrieve the data. I want the data as a CSV, so I am using Polars dataframes to store them. Because the data are paginated, I first have to create a list of dataframes, and then concat them into one.

import io
import requests
import polars as pl
import plotly.express as px

# Empty list to store dataframes in
dfs = []
# Pagination params
offset = 0
limit = 2500   # This is the max allowed for CSV

# Loop until we have all data
while True:
    # Run the API request
    print(f'Retrieving records {offset} to {offset + limit}...')
    r = requests.post(
        'https://environment.data.gov.uk/water-quality/data/observation',
        params={
            'skip': offset,
            'limit': limit,
            'dateFrom': '2026-01-01',
            'dateTo': '2026-01-07',
        },
        headers={
            'Accept': 'text/csv',
            'CSV-Header': 'present',
            'API-Version': '1',
            'Content-Type': 'application/json'
        }
    )
    # Check if the request was successful. If not, you might need
    # to do more digging into the response (e.g. looking at r.text)
    # to get the full explanation
    r.raise_for_status()
    # Check if we've got all the data yet. Could be handled more elegantly!
    if r.text == '':
        break
    # Create a dataframe from the CSV response. We need to override
    # the dtype of the 'result' column to a string (Utf8) because it
    # can contain non-numeric values. Polars infers dtypes by
    # reading a certain number of rows, and so it often incorrectly
    # thinks that 'result' is a float. If you are using Pandas, this
    # shouldn't be an issue as it is more permissive
    df = pl.read_csv(io.BytesIO(r.content),
                     schema_overrides={'result': pl.Utf8})
    # Add to our list of dataframes
    dfs.append(df)
    # Increment the offset for the next request
    offset += limit

# Concat the dataframes into one big dataframe
df = pl.concat(dfs)

Retrieving records 0 to 2500...
Retrieving records 2500 to 5000...
Retrieving records 5000 to 7500...
Retrieving records 7500 to 10000...
Retrieving records 10000 to 12500...
Retrieving records 12500 to 15000...
Retrieving records 15000 to 17500...
Retrieving records 17500 to 20000...
Retrieving records 20000 to 22500...
Retrieving records 22500 to 25000...
Retrieving records 25000 to 27500...

Now we have our data, we can see what columns it contains (information which is inconveniently absent from the official docs):

df.columns

['id',
 'samplingPoint.notation',
 'samplingPoint.prefLabel',
 'samplingPoint.easting',
 'samplingPoint.northing',
 'samplingPoint.region',
 'samplingPoint.area',
 'samplingPoint.subArea',
 'samplingPoint.samplingPointStatus',
 'samplingPoint.samplingPointType',
 'phenomenonTime',
 'samplingPurpose',
 'sampleMaterialType',
 'determinand.notation',
 'determinand.prefLabel',
 'result',
 'unit']

There is lots of information, but perhaps the most useful columns are the determinand.notation and determinand.prefLabel columns, telling us what the measurement is of (see below for more on determinands), and the result and unit columns, telling us the value and unit of measurement.

Note that, as commented in the above code, we read the result as a string, because it might contain non-numeric values like “<10”. Further parsing of these data is required to make them useful. Firstly, I want to know what non-numeric values are in the column. I will use Polars to try and cast the values as a float, and filter out values where this casting is successful. I also know that lots of values start with “<” or “>”, and I’m not interested in knowing these, so I filter them out too. Then I drop the duplicates by using unique().

df.filter(pl.col('result').cast(pl.Float64, strict=False).is_null()
          & pl.col('result').is_not_null()
          & ~pl.col('result').str.starts_with('<')
          & ~pl.col('result').str.starts_with('>')
).unique('result')['determinand.prefLabel', 'result', 'unit']

As you can see, a lot of the results are for qualitative determinands like “Flow Type”. How you deal with these rows depends on what you are trying to achieve with your analysis. For example, maybe you only want quantitative results, in which case you would simply filter out all non-numeric values:

df = (df.filter(pl.col('result').cast(pl.Float64, strict=False).is_not_null())
        .with_columns(pl.col('result').cast(pl.Float64)))

# Now you can do something like find the median value of each determinand.
# Theoretically, each determinand should have a unique unit, but that's
# not strictly true, so be careful doing this type of operation
df.group_by('determinand.prefLabel').agg(
    pl.col('result').median(),
    pl.col('unit').first()
)

Observations for a particular determinand near a particular location

Perhaps a more likely scenario is that you have a particular determinand (water quality parameter) that you are interested in. Let’s take pH as an example. To retrieve entries for a particular determinand, we need to know its “notation” (sometimes called its “code”, depending on which bit of the docs you read). If you don’t already know this, then you need to use another API endpoint to try and figure it out: /codelist/determinand. We have to search by the so-called “prefLabel”, which as you can see from the tables above, is a text-based description of the determinand. Let’s give pH a go:

# Function to search for a determinand by its prefLabel
def search_for_determinand(pref_label):
    r = requests.get(
        'https://environment.data.gov.uk/water-quality/codelist/determinand',
        params={
            'limit': 250,
            'prefLabel': pref_label
        },
        headers={
            'accept': 'application/ld+json',
            'API-Version': '1',
        }
    )
    r.raise_for_status()
    return r.json()

# Search for "pH" and see how many results are returned
r = search_for_determinand('pH')
len(r['member'])

250

Turns out the search is pretty useless if your search phrase (“pH”) is contained in lots of other words… We’ve actually hit the 250 limit, and so if we want to load all of the results, we would have to use pagination. Before doing this, let’s first check if “pH” is already contained in this list, by working on the presumption that prefLabel = 'pH'. Honestly, it would have been a lot easier if they just provided us a big table…

for determinand in r['member']:
    if determinand['prefLabel'] == 'pH':
        print(determinand['notation'])

0061

Now we have the notation to search by: 0061. Let’s try and search for all measurements of pH within a 10 km radius of Lancaster University, making use of the radius-based search function. Unless you specify an individual sampling point, the API requires that you limit the request to a year or less, so let’s look for data from 2025.

# Empty list to store dataframes in
dfs = []
# Pagination params
offset = 0
limit = 2500   # This is the max allowed for CSV

# Loop until we have all data
while True:
    # Run the API request
    print(f'Retrieving records {offset} to {offset + limit}...')
    r = requests.post(
        'https://environment.data.gov.uk/water-quality/data/observation',
        params={
            'skip': offset,
            'limit': limit,
            'dateFrom': '2025-01-01',
            'dateTo': '2025-12-31',
            'determinand': '0061',  # pH
            'latitude': 54.01,      # Lancaster Uni
            'longitude': -2.79,
            'radius': 10            # 10km radius around Lancaster Uni
        },
        headers={
            'Accept': 'text/csv',
            'CSV-Header': 'present',
            'API-Version': '1',
            'Content-Type': 'application/json'
        }
    )
    # Check if the request was successful
    r.raise_for_status()
    # Check if we've got all the data yet
    if r.text == '':
        break
    # Create a dataframe from the CSV response
    df = pl.read_csv(io.BytesIO(r.content),
                     schema_overrides={'result': pl.Utf8})
    dfs.append(df)
    # Increment the offset for the next request
    offset += limit

# Concat the dataframes and save
df = pl.concat(dfs)

Retrieving records 0 to 2500...
Retrieving records 2500 to 5000...

Let’s see how many sampling points were found in the search, and how many observations each have:

df['samplingPoint.prefLabel'].value_counts(sort=True)

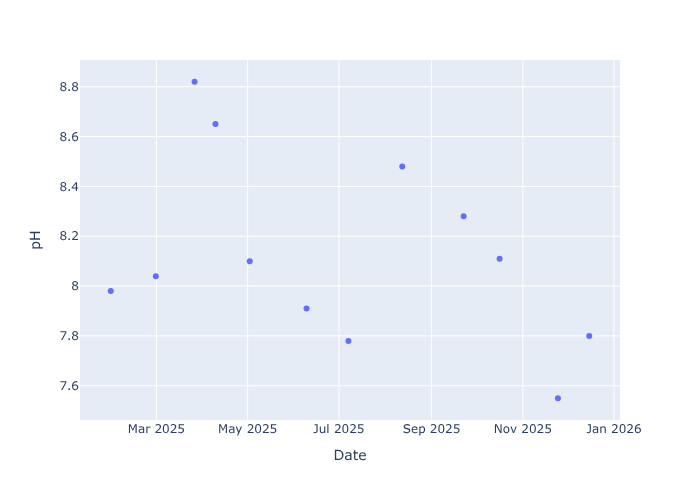

Let’s take example of the Wyre at Sparrow Gill. We can pull out the pH data and plot as a timeseries:

# Filter the dataframe to just Sparrow Gill
df_sg = df.filter(pl.col('samplingPoint.prefLabel') == 'RSN0348 WYRE D/S SPARROW GILL')
# Cast result as float (they should all be numeric) and phenomenonTime
# as datetime
df_sg = df_sg.with_columns(pl.col('result').cast(pl.Float64),
                           pl.col('phenomenonTime').cast(pl.Datetime))
# Plot the time series
fig = px.scatter(df_sg, x='phenomenonTime', y='result',
                 labels={'phenomenonTime': 'Date', 'result': 'pH'})
fig.show(renderer='png')

The API is obviously more comprehensive than the brief examples I’ve given here, though for the common task of retrieving observations across sites and date ranges, these are probably the most relevant workflows. The full API documentation is here, though a degree of trial and error is required to correctly interpret the more ambiguous parts of it. Good luck!
